5000nits Pole Mounted Full Color Outdoor SMD Led Display P6.94 Fixed Exterior Led Screen
A block is a board of LEDs of size 500 × 250mm that, as a whole, form an LED screen of different sizes depending on the number of blocks chosen. These blocks have a pitch of 5.95 mm, 6.94mm, 7.81mm or 10.41mm, thus obtaining high resolution and image quality from long distances. We can reproduce any video or image, since it supports any type of format. Thanks to this flexibility, we turn the screen into the best form of communication.
Main Feature
P6.94 Outdoor Full Color LED Display Specifications
| Description of product | 5000nits P6.94 Fixed Exterior Led Screen Full Color Outdoor SMD Led Display |
| Product dimensions(overall) | 2054mm x 5704mm x 357mm |
| Visual size | 2000 x 3000mm |
| Mechanical construction | Welded powder coated extruded aluminum alloy body |
| Galvanized zinc reinforcement plate and stand | |
| Waterproof level | IP65 |
| Pixel Pitch(mm) | 6.94mm |
| LED arrangement | 3 in 1 SMD |
Physical Density(Pixels/m2) | 20736 |
| Module resolution | 72x36pixels |
| Module size L*H(mm) | 500 x 250mm |
| Cabinet resolution | 144*144pixels |
| Cabinet dimensions | 1000x1000x84.4mm |
| Cabinet weight | 18.48kg |
| Max power consumption | 600w/㎡ |
| AVG power consumption | 200w/㎡ |
| Viewing angel | 160°/133° |
| Best viewing distance | 7m-65m |
Operating Power Source | AC200-240V 50-60Hz |
| Operating temperature | -20°C~+45°C |
| Control method | synchronous control |
| Graphics card | DVI graphics card |
| Refresh frequency | 3840Hz |
| White balance brightness | 5000cd/㎡ |
| IP rating | IP65 |
| Operating system | windows |
Signal Input Source | Composite, S-Video, Component, HDMI, SDI, HD SDI, VGA, DVI |
| Control System | PCTV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional) |
| Life span | 75000-100000 hours |
| Available options | Side A with led screen,side B with static or scrolling poster |
| Side B | LED backlit 2000 nits |
| Cooling system | Automatic cooling system configured high-power cooling fan group (Noiseless fans group) |

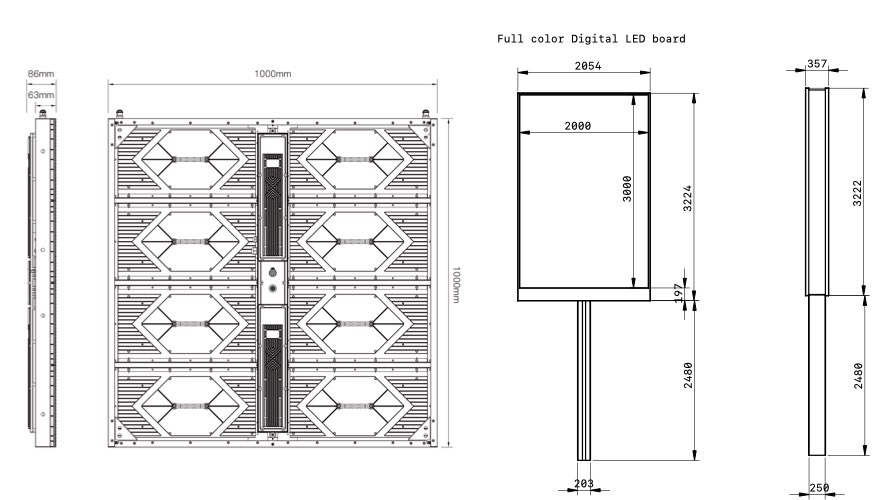

Product dimension

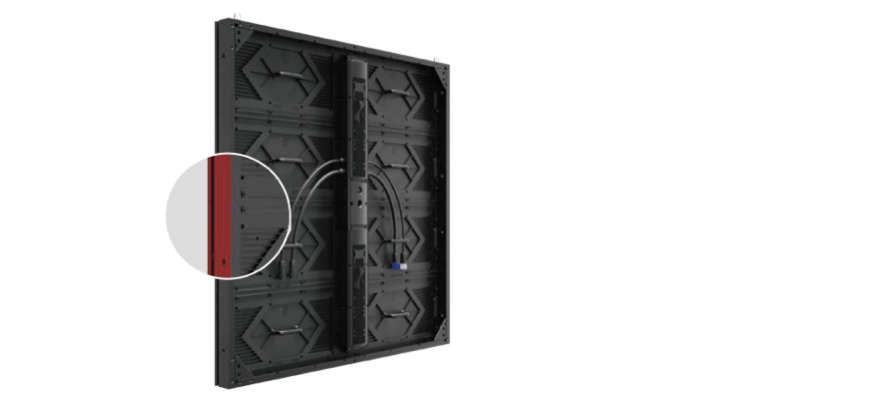

EXPANDED VIEW
01 STRONG
• Aluminium profile system frame is more durable and highly stable compared to traditional magnesium panels.
02 LIGHTWEIGHT
Aluminum cabinet: 19kgs Traditional metal sheets cabinet: 64kgs
03 EASY MAINTENANCE
• Front and Rear maintenance system available.
• The universal LED modules can be interchangeable for easy installation and maintenance
• Separate and exchangeable power and data unit can be easily removed for easy maintenance.

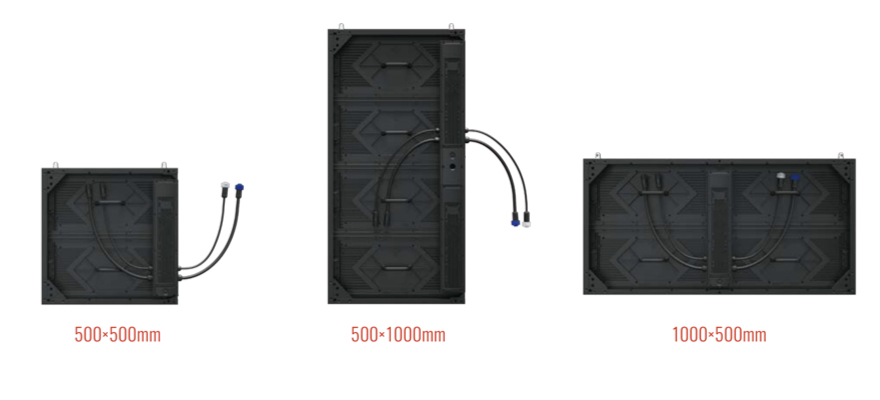

04 FLEXIBLE
• Multiple Panel Dimensions. Panels available at 1000x1000mm, 1000x500mm,500x1000mm, and 500x500mm sizes for any application.
05 RELIABLE
• IP65 waterproof level ensures smooth and reliable operation under variable and extreme weather conditions.
Customize Design Available
With our engineering and design team, we can working more closely with client to produce customize products, you don’t have to provide the whole drawing, you can just drop an idea, and we will do the rest.
Production Process
Applications
FAQ for indoor digital signage totem
1. What are the advantages of star vision’s digital signage ?
With more than decade experience on the design and engineering of ooh and Dooh infrastructure, Star Vision provide our customer designs which are unique from the market to increase Dooh Media owners brands recognition.
2. How do we start?
Once client told us where to deploy the structure, we will propose several design with price for choices, and also we can make new design based on clients requirement, after confirm all the details, than we do the quotation, then we go for prototype, after get feedback or approval of the prototype, than we proceed the bulk orders.
3. Can I have my logo on the product?
Yes, customized logo service is available.
4. What about the payment terms?
30% in advanced, balance before shipment.
5. How do you pack the products?
Wooden case on pallet, which is easy to load and unload from the container, and protect the products well no matter by sea or by air.
6.How do you support us for use of the products?
We will send Installation drawing to client, and video call, phone services, email support are always available, and if necessary our engineer can visit client to guide how to install the products and train your team how to use our products, ticket, training and accommodations charges on client side.
7. What is the guarantee time?
The guarantee time is 1 year, and it can be extends to 3 years on extra charges, during guarantee period , we can repair or change defective components for client free of charge, however, delivery cost of sending components are on both side.
|
|
