| Ask Lasest Price | |
| Brand Name : | Starvision |
| Model Number : | SV-LED-605 |
| Certification : | CE |
| Price : | Negotiate |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 100 units per month |
| Delivery Time : | 5-8 weeks after receipt of your payment |
P3 Full Color Outdoor Led Mupi Pole Mounted Led Advertising Screen
The brightest, full-color, shiny object is going to draw attention every time. Day or night, our digital LED sign stands out from the crowd, engaging traffic with brilliant advertisements that are brighter, clearer, and just plain better. Even at highway speeds. All types of businesses can leverage the benefits of our outdoor led mupi to connect with customers that would otherwise pass right by.
Main Feature
Outdoor Full Color Led Display Specification
| Product dimensions(overall) | 1392mm x 3408mm x 200mm |
| Visual size | 1152X 1728mm |
| Mechanical construction | Welded powder coated extruded aluminum alloy body |
| Galvanized zinc reinforcement plate and stand | |
| Waterproof level | IP65 |
| Pixel Pitch(mm) | 3mm |
| Pixel Configuration | 1R1G1B |
| Real Pixel Resolutions (Pixels/m2) | 111111 |
| LED encapsulation | SMD1921 |
| Module size L*H(mm) | 192 x 192mm |
| Module resolution(pixels) | 64*64 |
| Physical cabinet resolution(pixels) | 192*192 |
| led cabinet weight | 8.5kgs |
| Best viewing distance | 3m-7.5m |
| Viewing angle level | 140° |
| Vertical | 120° |
| Mean time between failures | ≧10000 hours |
| Power consumption(average) | 280w/sqm |
| Drive mode | 1/16 scan |
| Maximum power consumption | 850w/sqm |
| Refresh frequency | 3840Hz |
| White balance brightness | 5000-5500 cd/㎡ |
| Serviceability | back service |
| Video signal | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION, etc |
| Control System | PCTV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional) |
| Life span | 75000-100000 hours |
| Available options | Side A with led screen,side B with static or scrolling poster |
• SINGLE SIDED
A single sided unit features one side of the unit with an LED display with the rear of the unit being blank for configurations where the display will back up to a wall.
• SINGLE SIDED BACKLIT
A single-sided backlit unit features one side of the unit with an LED display while the rear of the unit features a backlit light box for a static print banner for budget-conscious customers.
• DOUBLE SIDED
A double-sided unit features dual LED screens on each side of the unit. Each side can be independently controlled or display the same content on each side to utilize the screen how you see fit.

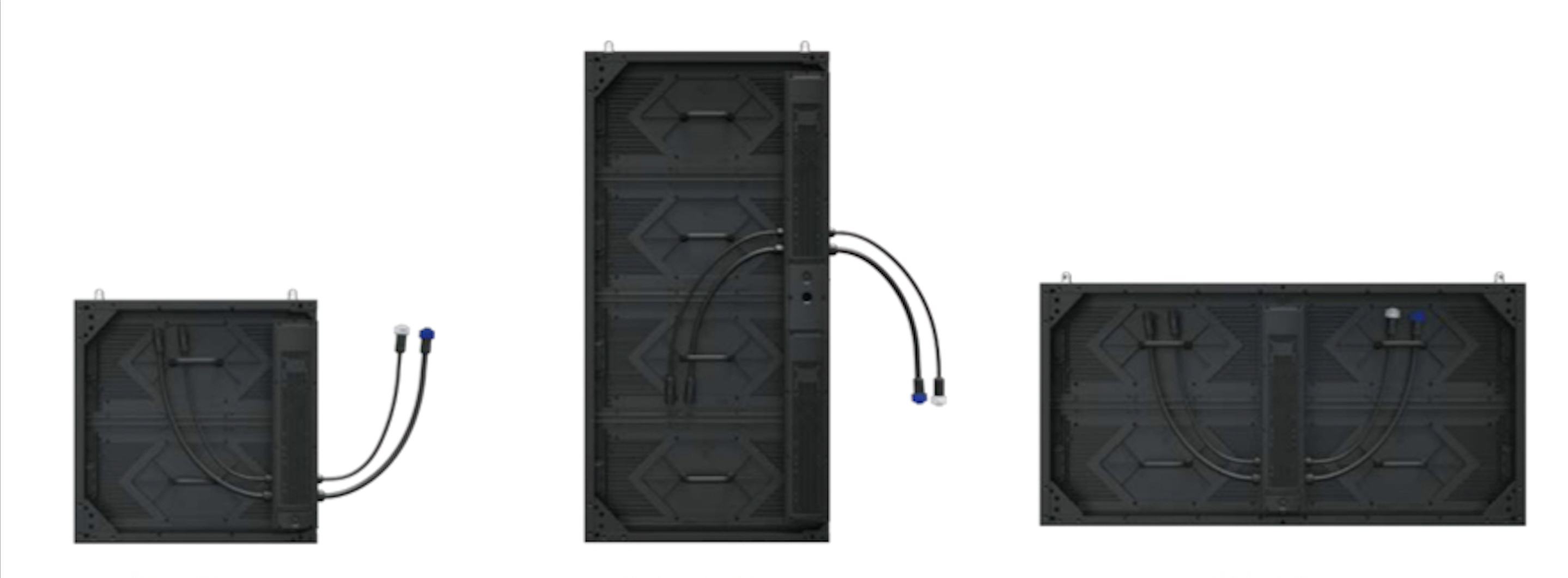

EXPANDED VIEW
01 STRONG
• Aluminium profile system frame is more durable and highly stable compared to traditional magnesium panels.
02 LIGHTWEIGHT
Aluminum cabinet: 19kgs Traditional metal sheets cabinet: 64kgs
03 EASY MAINTENANCE
• Front and Rear maintenance system available.
• The universal LED modules can be interchangeable for easy installation and maintenance
• Separate and exchangeable power and data unit can be easily removed for easy maintenance.
04 FLEXIBLE
• Multiple Panel Dimensions. Panels available at 576x576mm, 1152x576mm, 1152x1728mm sizes for any application.
05 RELIABLE
• IP65 waterproof level ensures smooth and reliable operation under variable and extreme weather conditions.
Customize Design Available
With our engineering and design team, we can working more closely with client to produce customize products, you don’t have to provide the whole drawing, you can just drop an idea, and we will do the rest.
Applications
FAQ for indoor digital signage totem
1. What are the advantages of star vision’s digital signage ?
With more than decade experience on the design and engineering of ooh and Dooh infrastructure, Star Vision provide our customer designs which are unique from the market to increase Dooh Media owners brands recognition.
2. How do we start?
Once client told us where to deploy the structure, we will propose several design with price for choices, and also we can make new design based on clients requirement, after confirm all the details, than we do the quotation, then we go for prototype, after get feedback or approval of the prototype, than we proceed the bulk orders.
3. Can I have my logo on the product?
Yes, customized logo service is available.
4. What about the payment terms?
30% in advanced, balance before shipment.
5. How do you pack the products?
Wooden case on pallet, which is easy to load and unload from the container, and protect the products well no matter by sea or by air.
6.How do you support us for use of the products?
We will send Installation drawing to client, and video call, phone services, email support are always available, and if necessary our engineer can visit client to guide how to install the products and train your team how to use our products, ticket, training and accommodations charges on client side.
7. What is the guarantee time?
The guarantee time is 1 year, and it can be extends to 3 years on extra charges, during guarantee period , we can repair or change defective components for client free of charge, however, delivery cost of sending components are on both side.
|
|
