| Brand Name : | Starvision |
| Model Number : | SV-LEDRD-302 |
| Certification : | CE |
| Price : | Negotiate |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 100 units per month |
| Delivery Time : | 5-8 weeks after receipt of your payment |

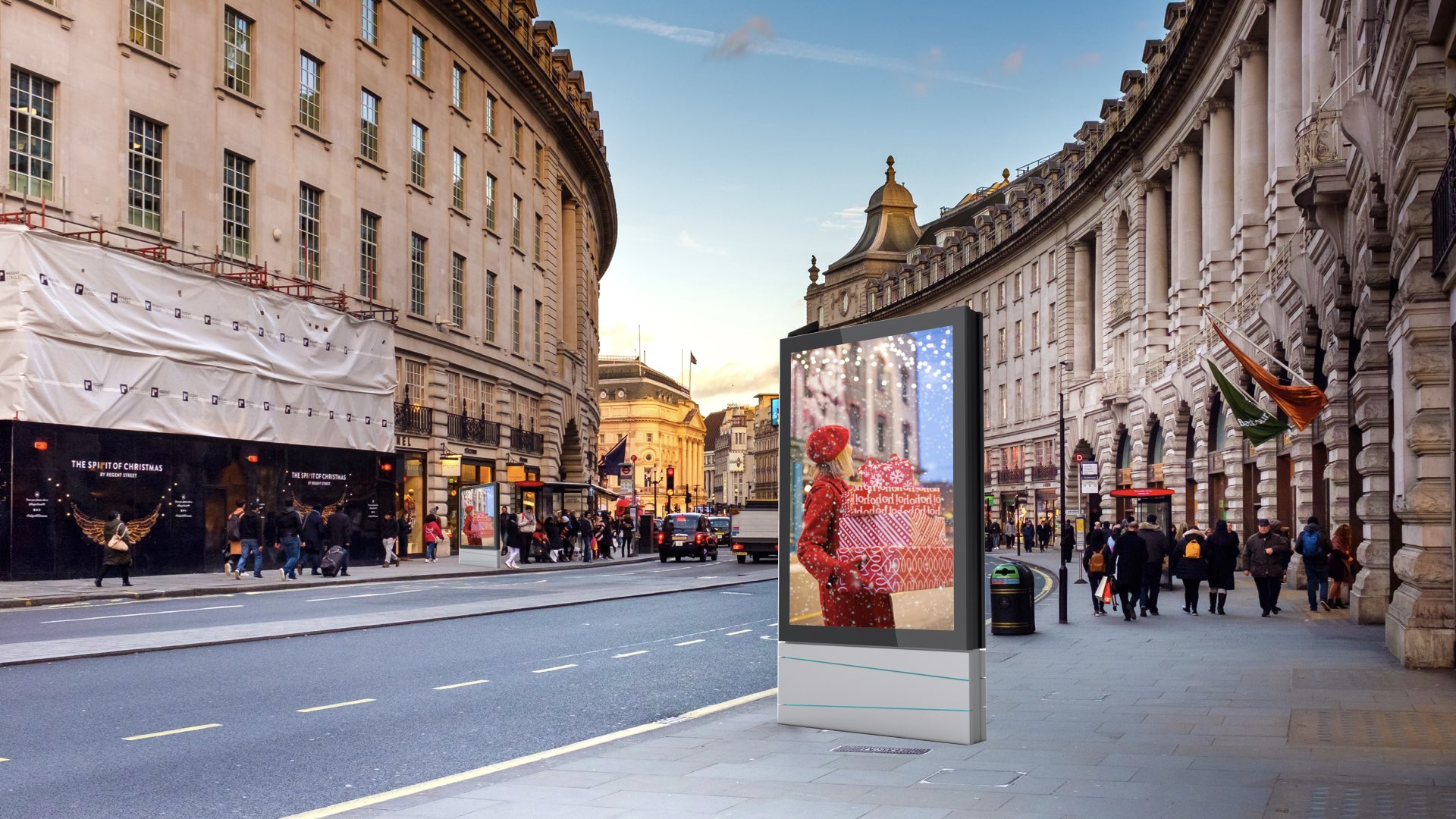

High Brightness Stylish Outdoor Led Totem IP65 Weather Proof For
Outdoor Advertising
The smaller the pixel pitch (distance between each pixel) the
higher the resolution and closer the viewer can be stood to the
screen.
Starvision's outdoor LED screen is manufactured to strict quality
standards and come complete with free spare parts and one year
comprehensive warranty.
Main Feature
Outdoor Full Color Led Display Specification
| Product dimensions(overall) | 1350mm x 2310mm x 200mm |
| Visual size | 1150X 1710mm |
| Mechanical construction | Welded powder coated extruded aluminum alloy body |
| Galvanized zinc reinforcement plate and stand | |
| Waterproof level | IP65 |
| Pixel Pitch(mm) | 3mm |
| Pixel Configuration | 1R1G1B |
| Real Pixel Resolutions (Pixels/m2) | 110889 |
| LED encapsulation | SMD1921 |
| Module size L*H(mm) | 192 x 192mm |
| Module resolution(pixels) | 64*64=4096DOTS |
| Physical cabinet resolution(pixels) | 576*576 |
| Module weight | 600G |
| Best viewing distance | 3m-7.5m |
| Viewing angle level | 160° |
| Vertical | 130° |
| Mean time between failures | ≧5000 hours |
| Graphics card | DVI graphics card |
| Drive mode | 1/8 scan |
| Maximum power | 4380W |
Average power consumption(w/pcs) | 1680W |
| Refresh frequency | 3840Hz |
| White balance brightness | 5000 cd/㎡ |
| Operating system | windows |
| Video signal | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION, etc |
| Control System | PCTV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional) |
| Life span | 75000-100000 hours |
| Available options | Side A with led screen,side B with static or scrolling poster |
Reasons To Choose Our SMD Range

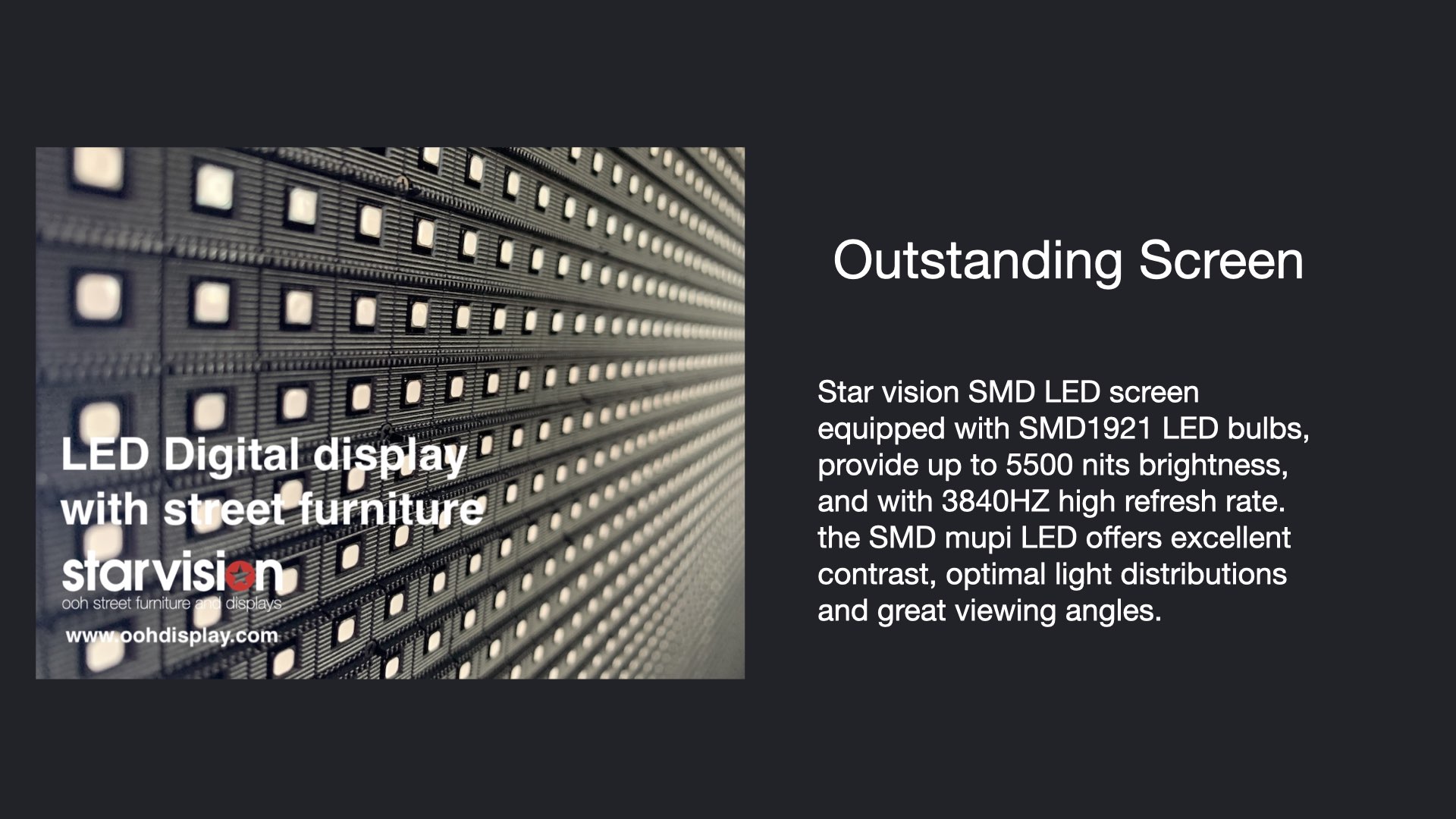

Star vision SMD LED screen equipped with SMD1921 LED bulbs, provide up to 5500 nits brightness, and with 3840HZ high refresh rate. the SMD mupi LED offers excellent contrast, optimal light distributions and great viewing angles.
The screen is covered by 6mm clear tempered glass(IK10),with ceramic printing border. Customize backlit logo printing available, and its easy clean.

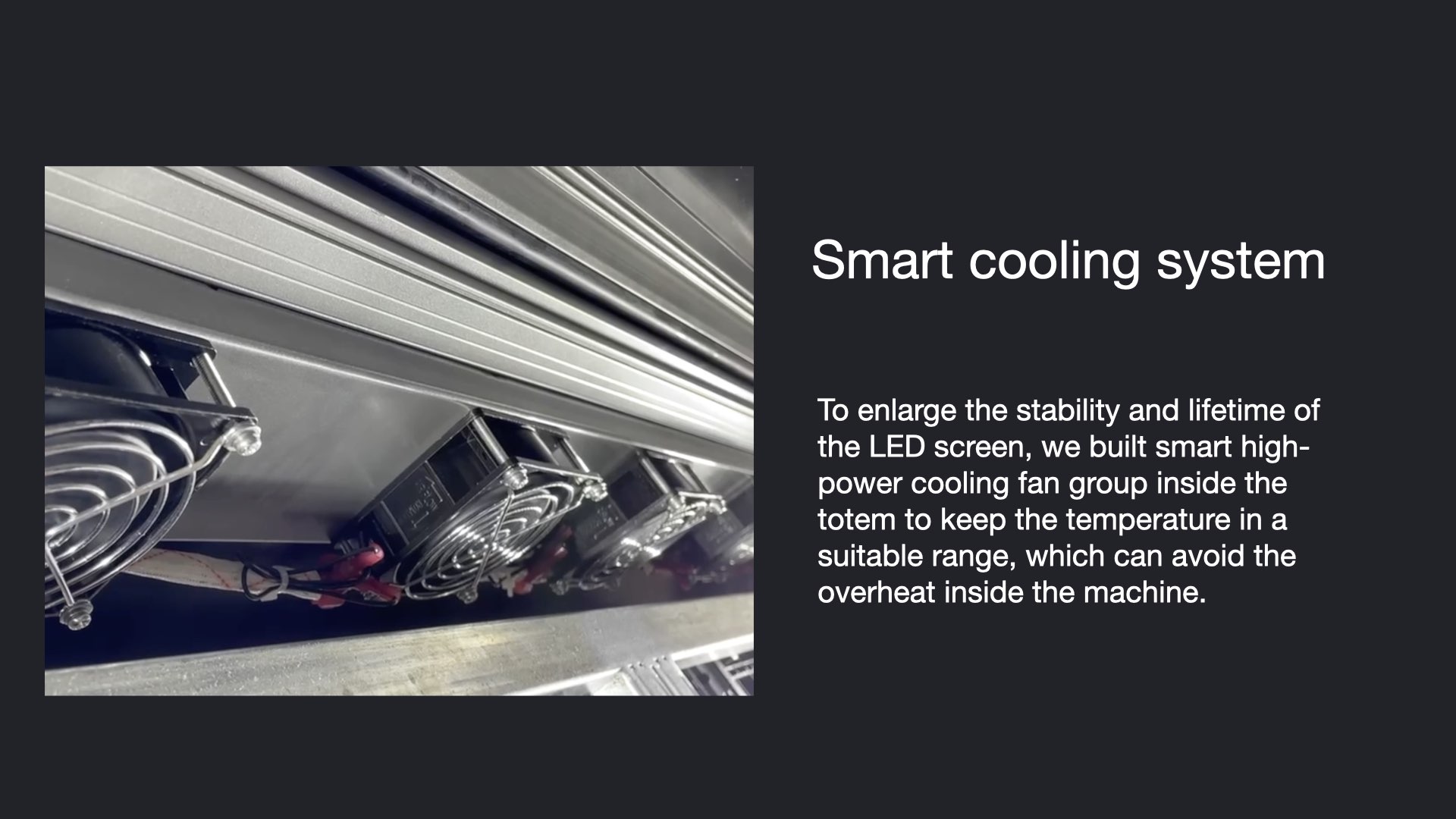

To enlarge the stability and lifetime of the LED screen, we built smart high-power cooling fan group inside the totem to keep the temperature in a suitable range, which can avoid the overheat inside the machine.
LED illuminance for poster side up to 3000 lux, with 6500k comfortable color temperature. Both doors with gas spring support and hinges on the top, allows both front and back access maintenance of LED screen.
With our easy poster system equipped with poster clips on white acrylic diffuser with aluminum frame and stainless steel sliding rail. With the easy poster system, client can change a poster quickly and easily.

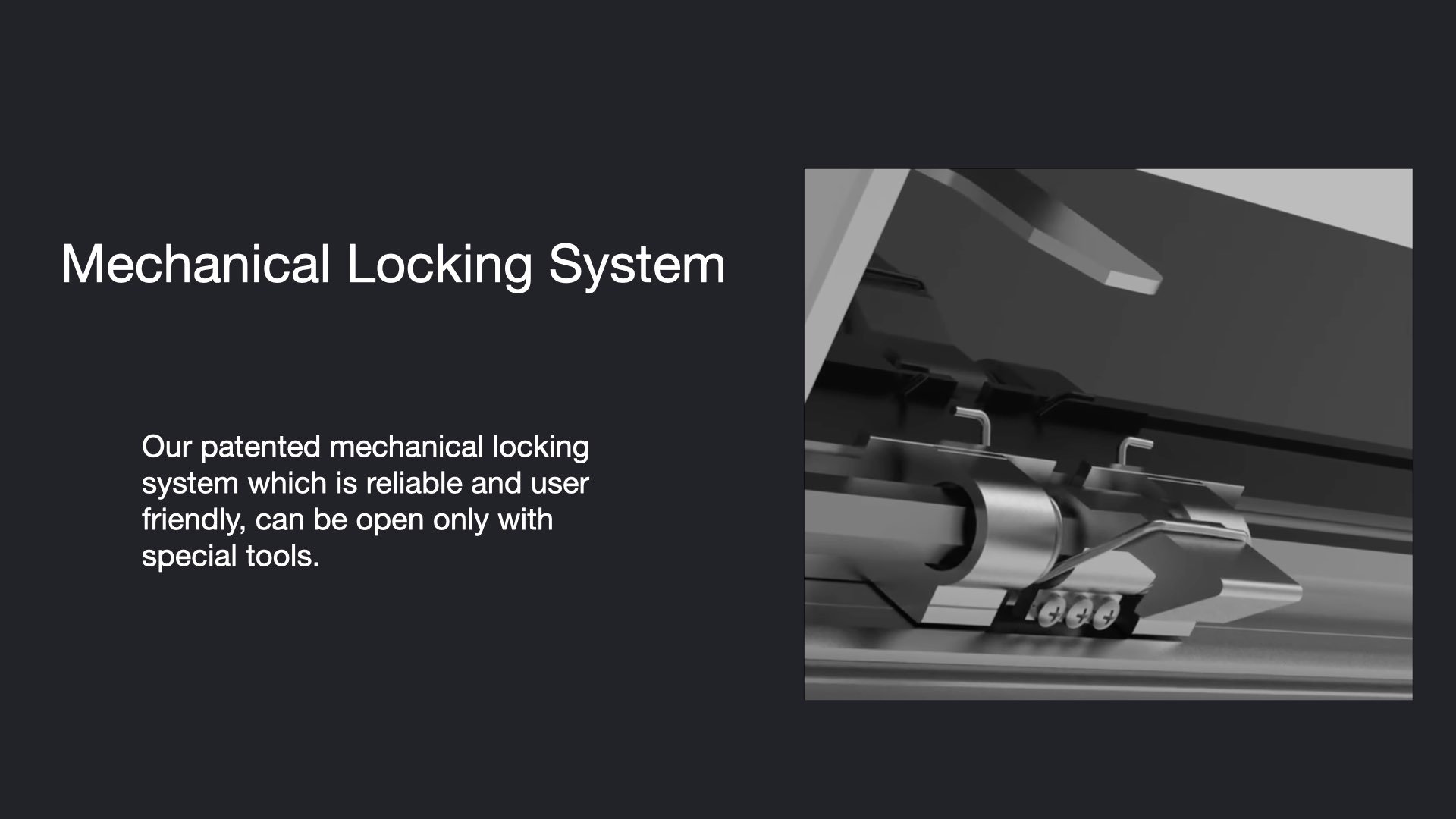

Our patented mechanical locking system which is reliable and user friendly, can be open only with special tools.
The smart control system based on android 11. Which allows client to control the content by PC and mobile. with the smart control CMS, clients can monitor the screens performance and condition remotely. Including temperature, power, displays. The Auto brightness control will automatically adjust the brightness according to the environment.
Applications
FAQ for indoor digital signage totem
1. What are the advantages of star vision’s digital signage ?
With more than decade experience on the design and engineering of
ooh and Dooh infrastructure, Star Vision provide our customer
designs which are unique from the market to increase Dooh Media
owners brands recognition.
2. How do we start?
Once client told us where to deploy the structure, we will propose
several design with price for choices, and also we can make new
design based on clients requirement, after confirm all the details,
than we do the quotation, then we go for prototype, after get
feedback or approval of the prototype, than we proceed the bulk
orders.
3. Can I have my logo on the product?
Yes, customized logo service is available.
4. What about the payment terms?
30% in advanced, balance before shipment.
5. How do you pack the products?
Wooden case on pallet, which is easy to load and unload from the
container, and protect the products well no matter by sea or by
air.
6.How do you support us for use of the products?
We will send Installation drawing to client, and video call, phone
services, email support are always available, and if necessary our
engineer can visit client to guide how to install the products and
train your team how to use our products, ticket, training and
accommodations charges on client side.
7. What is the guarantee time?
The guarantee time is 1 year, and it can be extends to 3 years on
extra charges, during guarantee period , we can repair or change
defective components for client free of charge, however, delivery
cost of sending components are on both side.
|
|
