| Brand Name : | Starvision |
| Model Number : | SV-LEDRD-304 |
| Certification : | CE |
| Price : | Negotiate |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 100 units per month |
| Delivery Time : | 5-8 weeks after receipt of your payment |

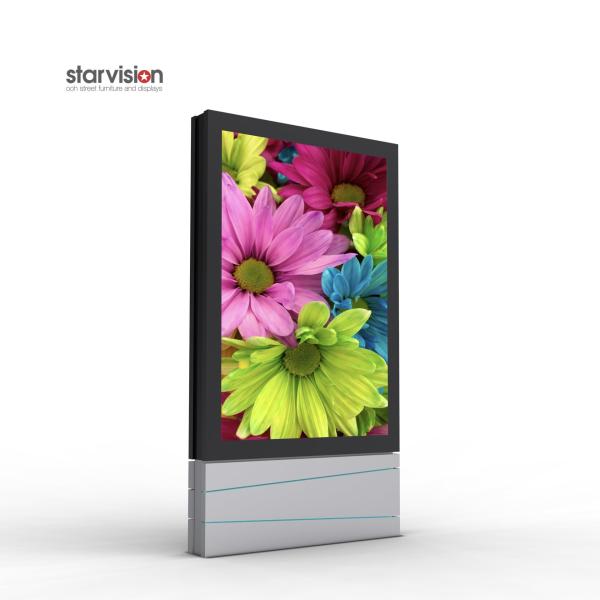

P3 Outdoor LED Totem 2 Square Meters Advertising Display For City Center
Not all Digital Signage displays for use in outdoor environment are the same. Normal LCD screens don’t display well in direct sunlight and eventually get dark patches forming. Our LED digital totem displays are designed especially for the job and give a bright display in direct sunlight and can operate in high temperatures without any problems.
Main Feature
Outdoor Full Color Led Display Specification
| Product dimensions(overall) | 1350mm x 2300mm |
| Visual size | 1150X 1710mm |
| Mechanical construction | Welded powder coated extruded aluminum alloy body |
| Galvanized zinc reinforcement plate and stand | |
| Waterproof level | IP65 |
| Pixel Pitch(mm) | 3mm |
| Pixel Configuration | 1R1G1B |
| Real Pixel Resolutions (Pixels/m2) | 111111 |
| LED encapsulation | SMD1921 |
| Module size L*H(mm) | 192 x 192mm |
| Module resolution(pixels) | 64*64=4096DOTS |
| Physical cabinet resolution(pixels) | 576*576 |
| Module weight | 600G |
| Best viewing distance | 3m-7.5m |
| Viewing angle level | 160° |
| Vertical | 130° |
| Mean time between failures | ≧5000 hours |
| Graphics card | DVI graphics card |
| Drive mode | 1/8 scan |
| Maximum power | ≤42W |
| Refresh frequency | 3840Hz |
| White balance brightness | 5000 cd/㎡ |
| Operating system | windows |
| Video signal | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION, etc |
| Control System | PCTV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional) |
| Life span | 75000-100000 hours |
| Available options | Side A with led screen,side B with static or scrolling poster |
Reasons To Choose Our SMD Range
Applications
FAQ for indoor digital signage totem
1. What are the advantages of star vision’s digital signage ?
With more than decade experience on the design and engineering of ooh and Dooh infrastructure, Star Vision provide our customer designs which are unique from the market to increase Dooh Media owners brands recognition.
2. How do we start?
Once client told us where to deploy the structure, we will propose several design with price for choices, and also we can make new design based on clients requirement, after confirm all the details, than we do the quotation, then we go for prototype, after get feedback or approval of the prototype, than we proceed the bulk orders.
3. Can I have my logo on the product?
Yes, customized logo service is available.
4. What about the payment terms?
30% in advanced, balance before shipment.
5. How do you pack the products?
Wooden case on pallet, which is easy to load and unload from the container, and protect the products well no matter by sea or by air.
6.How do you support us for use of the products?
We will send Installation drawing to client, and video call, phone services, email support are always available, and if necessary our engineer can visit client to guide how to install the products and train your team how to use our products, ticket, training and accommodations charges on client side.
7. What is the guarantee time?
The guarantee time is 1 year, and it can be extends to 3 years on extra charges, during guarantee period , we can repair or change defective components for client free of charge, however, delivery cost of sending components are on both side.
|
|
